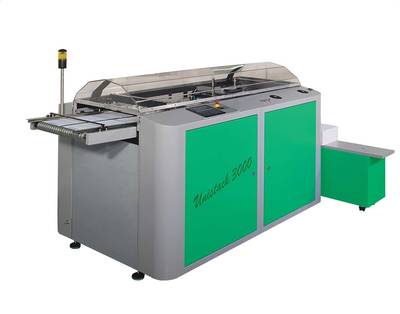

Unistack 3000

Universal stacking device for highest requirements, a development based on the UNISTACK 2000 device that has been installed world-wide more than 250 times.

Highlights

  • Stacking and counting device for stack and deep pile production from 6 to 28⅓ "
  • Safe processing with production speeds up to 350 m/min. (DIN A4)
  • High operation comfort
  • Shortest set-up times thanks to format changes without any need of tools
  • Easily movable on rolls
  • Pneumatic joggers with integrated blow air

Stack Production with Cross Pushing Unit

The cross pushing unit (batcher unit) for stack production from 6 to 12½ inches (optionally to 17 inches) is movable on rolls and can be attached to the UNISTACK device in no time without any tools. After receiving the piles, the cross pushing unit is lifted up pneumatically in order to guarantee a pleasant and ergonomic removal of the finished stacks. The batcher unit can be supplied in a left or right version according to the customer's wishes and is installed in a 90°-angle to the web running direction.



Deep Pile Production

The batcher unit is detached in no time and the UNISTACK 3000 can be set up from stack production to deep pile production. The maximal stacking height is 600 mm.

Two movable stacking carts are part of the basic delivery content.



Functional Description

  • 2 stacking carts (movable on rolls) for stack and deep pile production
  • The input keyboard of the PLC drive is easy to operate, all processing steps are programmed
  • 10 programmable memory slots allow the storing of sheet related parameters
  • 6 operating languages can be stored in the operating panel

Static Blocking Unit

Formats with a segment length of less than 10", varnished sheets, and paper weights of less than 60 gsm usually have very little adhesion and tend to be shifted during the stack piling process and especially during the transport.



UNISTACK 3000

The static blocking unit guarantees a compact moving of the stack during its transport into a further processing unit such as the SOLLAS 20, the ATS-US-2000 AB Transit or the Universa 400 NT.
