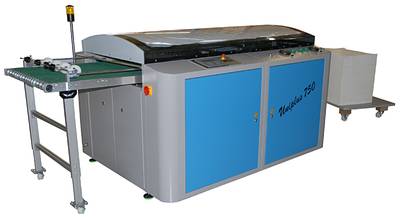

Uniplus 750
The UNISTACK Plus generation for a web width of 750 mm is a special device for light paper weights. Widely-known printing companies that are specialized in pharmaceutical instruction leaflets have confidence in this generation's new stacking technology.
Highlights
- Stack changing system without interruption of the shingle stream
- 2 motor-driven infeed belts with adjustable speeds via control panel
- Belt table 2 driven by means of upper belts, equipped with sheet profiling
- Driven upper belts in the stacking position
- Air suction out of the stack by means of a radial blower
Deep Pile Production
Large format sheets can be stacked up to a maximum height of 580 mm on the special deep pile carts that are delivered with the stacking unit. In order to ensure a perfectly safe stacking process, the UNIPLUS-750 unit is equipped with upper belts in the stacking position that transport the individual sheets safely into their stacking position.
Option: lowerable fork during stack change
Stack Production with Cross Pushing Unit
The air-supported cross pushing unit (batcher unit) for stack production from 16 to 28⅓ inches is movable on rolls and can be attached to the UNIPLUS-750 device in no time without any tools. After receiving the piles, the cross pushing unit is lifted up pneumatically in order to guarantee a pleasant and ergonomic removal of the finished stacks. The batcher unit can be supplied in a left or right version according to the customer's wishes and is installed in a 90°-angle to the web running direction.
